WPHMOTO 48 Volt 1000 Watt Brush Electric Motor Controller for e-Bike Tricycle Scooter Bicycle

Description

• Universal 48v 1000w super power brushed controller
• Fit for 48v 1000w brushed motor

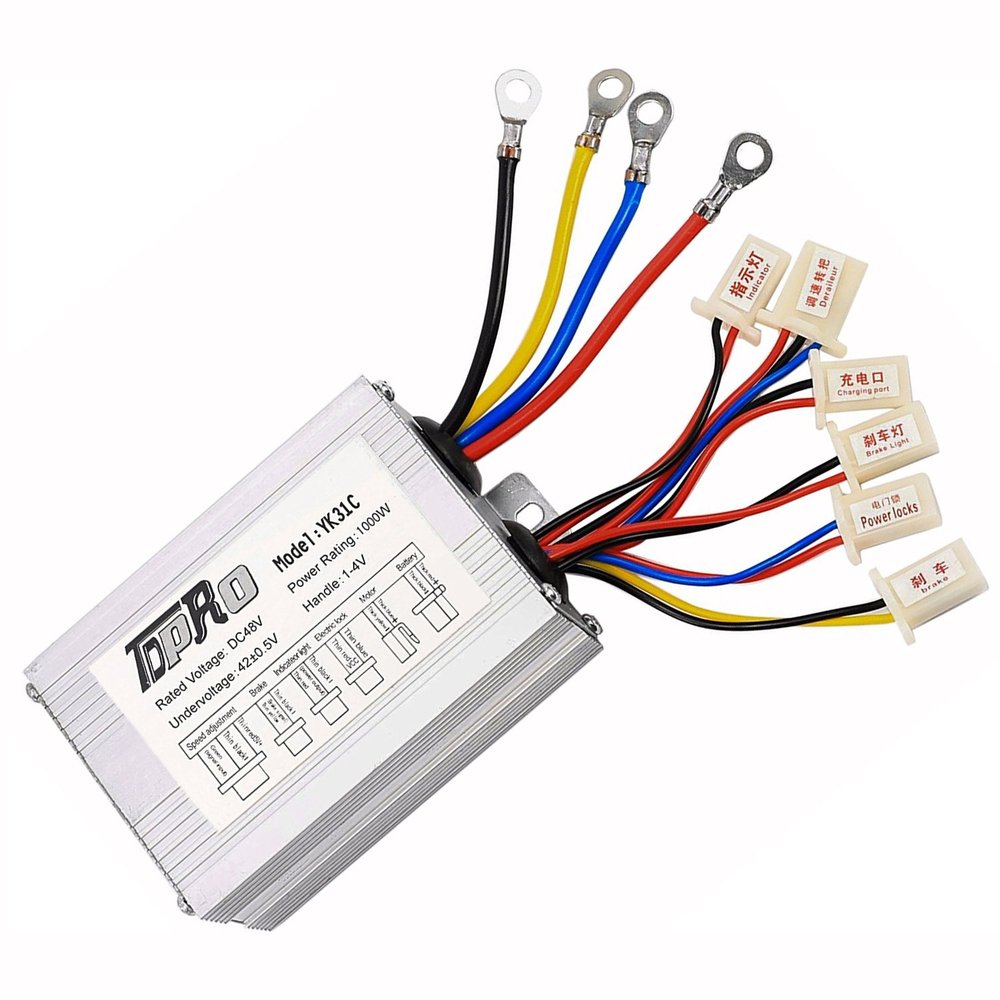

• Refer to picture and below "Product Description" for wiring instruction and specifications
• Fits for electric scooter, e-bike, tricycle, mini bike, pocket bike, go kart, atv, moped

Specifications:
Rated voltage: 48V DC
Match motor: 48V 1000 W
Conversion efficency: 95%
Under Voltage Protection: 420.5V
Speed regulator (throttle): 1-4 V

Wiring:
This controller has 9 connectors, compatible with many 48V bikes with up to 1000W motors
1. Battery / 2. Motor / 3. Brake / 4. Brake light / 5. Indicator light / 6. Ignition lock / 7. Charger port / 8. Derailleur (throttle)

These controllers have 4 groups neccessary cables: Battery, Motor, Ignition lock, Derailleur (throttle), when hook up these 4 groups cables, the E-bike can run normally.
Besides, this controller have other optional functions, you can hook them up according to your applications.
