TDPRO 24V 500W Brushed Speed Motor and Controller for Electric Scooter Go Kart Bicycle E Bike Tricycle Moped

Description

• This is a set of reliable universal 24V DC 500W brushed electric motor & controller
• Rated speed: 2500 RPM, Sprocket11 tooth sprocket for #25H chain, Horsepower: 0.68HP
• Suitable for go karts, scooters, e-bike, atv, motorized bicycle, moped, mini bikes, pocket bikes and electric dirt bikes
• Refer to picture and below "Product Description" for wiring instruction and specifications

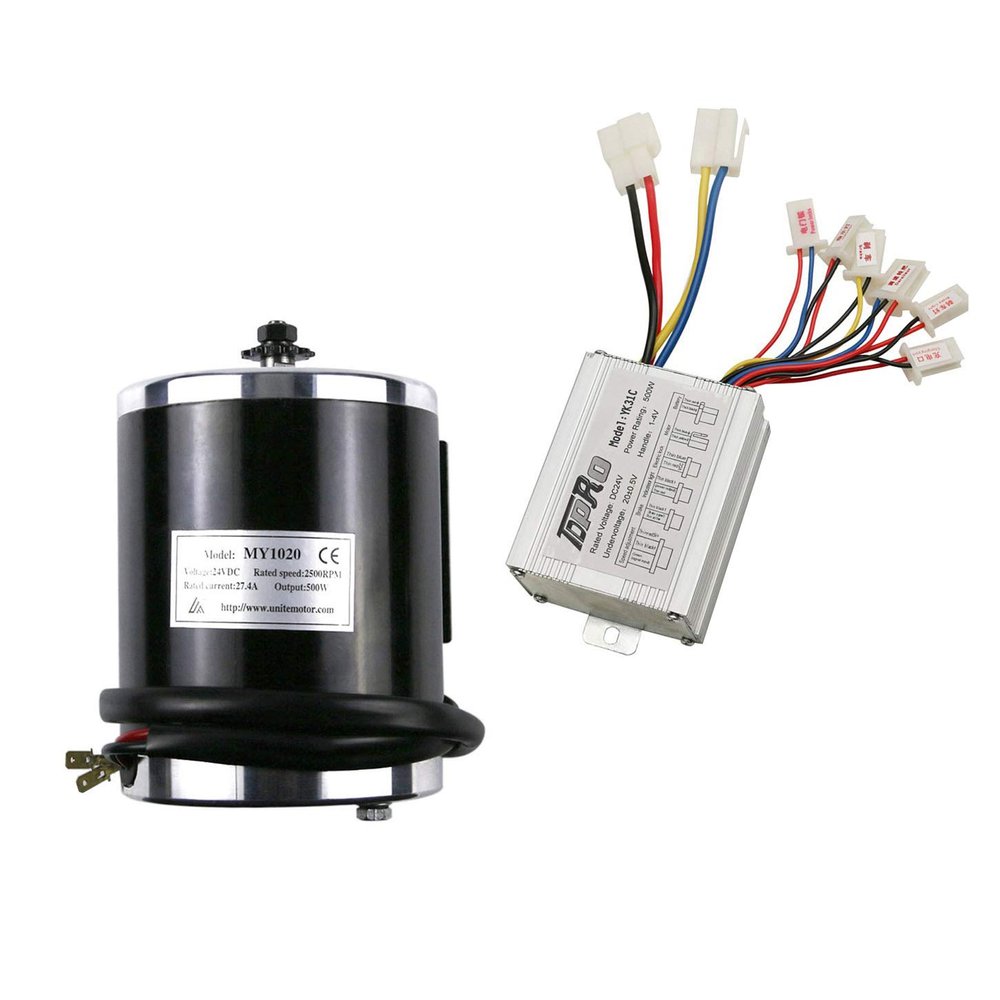

• Package includes: 1x Motor + 1x Controller

Motor:
Output: 500W
Rated speed: 2400-2600 RPM
Rated voltage: 24V DC
Rated current: 27.41A
No-load current: 2.8A
Peak efficiency at 24V: 80 percent
Reversible: (w/ polarity swap)
Sprocket11 tooth sprocket for #25H chain

Controller:
Rated voltage: 24V DC
Conversion efficency: 95%
Under Voltage Protection: 200.5V
Speed regulator (throttle): 1-4 V

Controller Wiring:
This controller has 8 connectors, compatible with many 24V bikes with up to 500W motors
1. Battery / 2. Motor / 3. Brake / 4. Brake light / 5. Indicator light / 6. Ignition lock / 7. Charger port / 8. Derailleur (throttle)
These controllers have 4 groups neccessary cables: Battery, Motor, Ignition lock, Derailleur (throttle), when hook up these 4 groups cables, the E-bike can run normally. Besides, this controller have other optional functions, you can hook them up according to your applications.
