250W 350W Bike Brushless Motor Controller with LCD Display and Thumb Throttle Regenerative Brake Throttle Trigger (36V 250W350W)

Description

• 350W 500W Bike Brushless Motor Controller With LCD Display And Thumb Throttle Regenerative Brake Throttle Trigger

250W 350W Electric Bike Brushless Motor Controller With LCD Display And Thumb Throttle Regenerative Brake Throttle Trigger
This item is for electric bike or electric scooter.
We also have this item for 450W~3000W brushless motor, if you want, please feel free to contact me, thanks a lot.

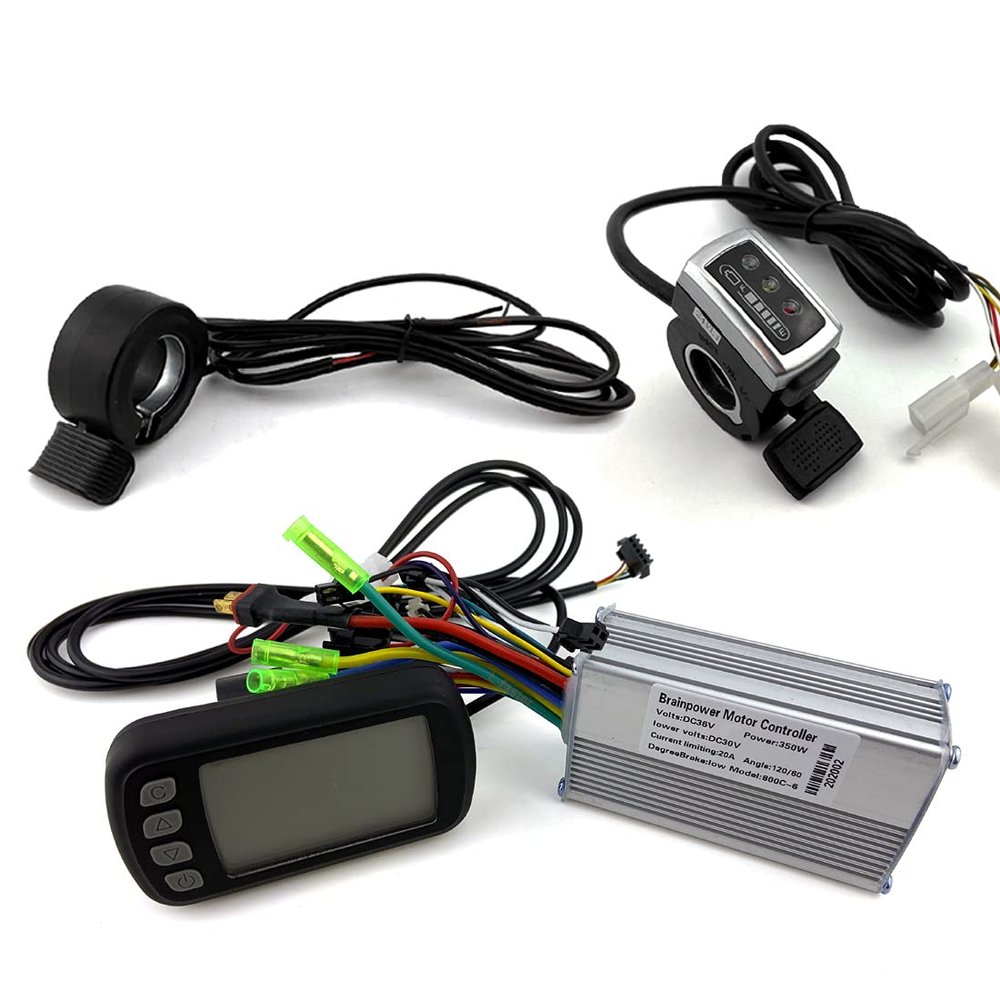

Item include:
1x Brushless motor controller
1x LCD display
1x Accelerator thumb throttle (with button switch & battery indicator lights)
1x Brake thumb throttle
-------------
Controller specification:
Rated voltage: 24V / 36V / 48V
Rated power: 250W ~ 350W
Max current: 10A ~ 20A
Lowest voltage protection: 19V / 30V / 41V
Suitable for: 250W ~ 350W brushless DC motor (include with hall sensor and without hall sensor)
Important:
There are many kinds of brushless DC motor in the market, so for match with them, the controller has a "reset" function,
after you connect all the wires necessary include "reset" wires, your motor will run automatically, and you can see if your motor run in right way,
if yes, then disconnect the "reset" wires and forget them please,
if your motor run in reverse direction, then disconnect the "reset" wires and connect them again quickly, now your motor will run in right direction, and after 2~3 seconds, disconnect the "reset" wires again,
now the controller has match with your motor.
And please note, keep the "reset" disconnect after this job, thanks a lot.
LCD display function:
Battery indicator, Motor power indicator, speed stage, bike speed indicator, single trip distance, total trip distance, single trip time, battery detailed voltage, cruise control. LCD working interface:
Wuxing accelerator thumb throttle:
Wuxing brake thumb throttle:
Mounted for reference:
