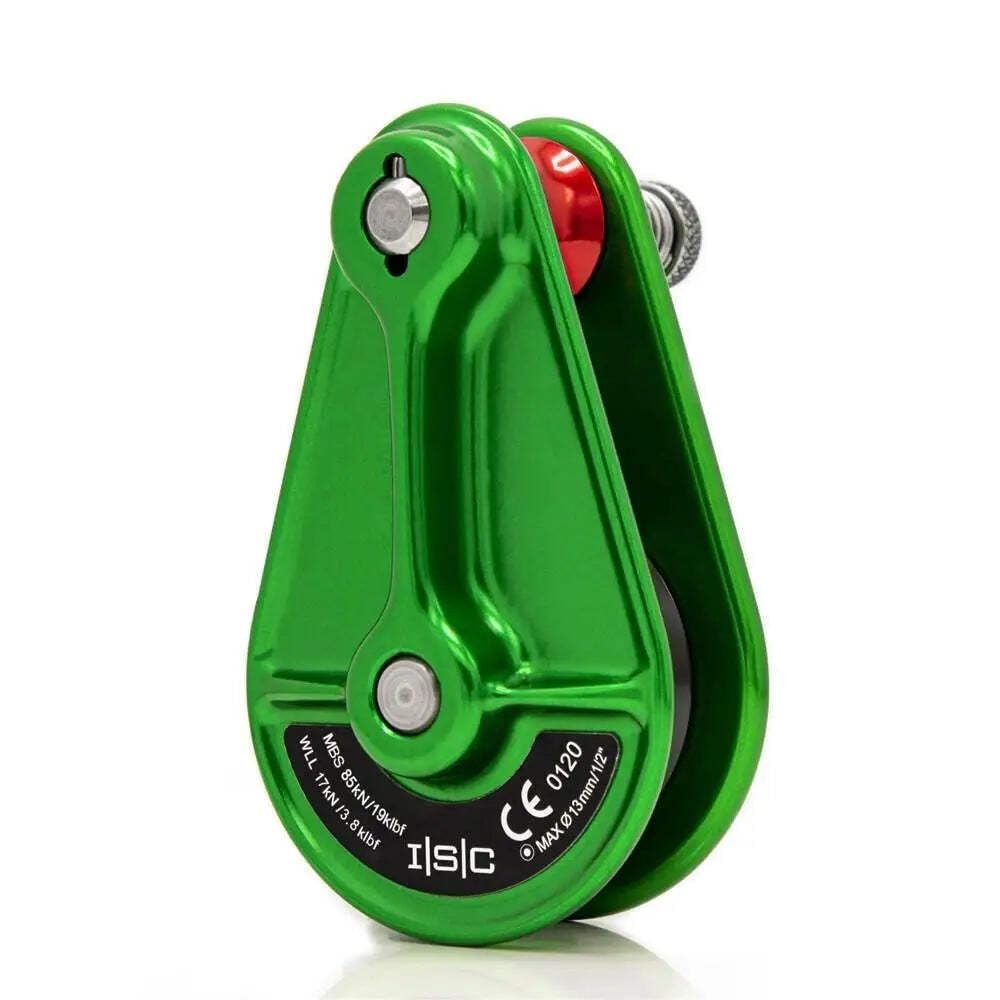

ISC Compact Rigging Pulley (13mm Rope Max)

Description

• Colored cheek plates & sheaves to easily identify max rope sizes, safe working-load limits, max breaking strengths & sheave sizes
• Lower sheave can hold up to 1/2" diameter rope. Top sheave can hold up to 5/8" diameter sling
• Working Load limit: 1,900 lbs. (8.4 kN)
• Easy to open fixed-pin attachment
• Sheave color - Gray

The RP048 Compact Rigging Block w/ Spring Pin. The latest addition to ISC's world-leading range of rigging pulleys is the new "Compact Block", suitable for lightweight rigging applications. At approximately half the size of the standard small rigging pulley and weighing in at only 490g (1lb), the new compact rigging pulley offers a highly impressive strength to weight ratio, with an 85kN (19,000 lbs.) MBS and WLL of 1,900 lbs.). The Pulley plates are made from hot forged Aluminum and it is this manufacturing process which allows such a compact pulley to boast such great strength and dynamic load bearing capacity. Features:Spring-lock pin, with chamfered head yields quick, easy location and secure lock.Wide, rounded cheek plates protects ropes to minimize wear. Color coded sheaves for quick easy sizing identification.Identifications plates with individually serial numbered make inspection tracking easy.Specifications: Height: 5 in.(125mm) Body Width: 3 in.(76mm) Body Material: Aluminum, Pin Material: Stainless Steel, Weight: 1 lb. (490g) MBS: 19,000 lbs. (85kN) WLL: 1,900 lbs. (8.4 kN) Working Line Capacity: 1/2 in. (13mm) Rigging Sling Size: 5/8 in.(16mm)
