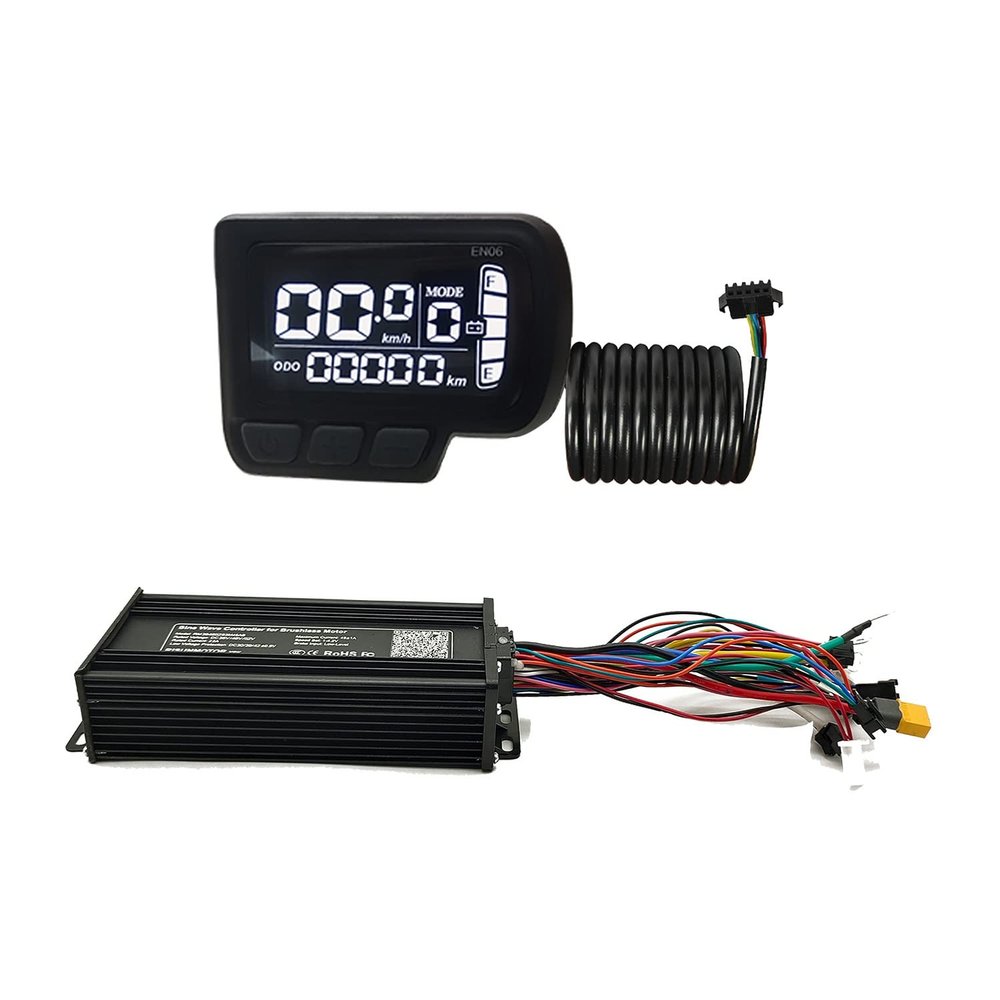

HALLOMOTOR ebike 36V 48V 52V 1000W-1500W 35A 3-Mode Sine Wave Brushless Controller with UKC1 SW900 EN06 LCD Display Electric Bicycle (35A Controller and EB06 Display)

Description

• Controller Size: 212x86.5x48.5mm
• Support dual mode: support hall sensor or Non-hall sensor
• Self Learning: Even wrong 3-phase combination between motor and controller, doesnt matter, above self-learning process can correct it!
• All protection make it long life and safe: over/under voltage, over current, over load, over heating, anti-runaway, locked-motor protection

Parts Including:
1. 15 MOSFET 35A 36V 48V, 52V Universal Voltage 1000W-1500W Intelligent 3-mode Sine Wave Controller
2. 36V, 48V, 52V,72V UKC1 Colorful Display , SW Display, EN06 (Optional)

Advantage:
1. Support dual mode: support hall sensor or Non-hall sensor
2. Self Learning: Even wrong 3-phase combination between motor and controller, doesnt matter, above self-learning process can correct it!
3. All protection make it long life and safe: over/under voltage, over current, over load, over heating, anti-runaway, locked-motor protection
4. Best heat sinking with Aluminium Case
5. Black anodized Aluminium Controller Case against scratch

Technical Data:
General Specification:
1. Rated Power: 36V 612W/ 48V 816W/ 52V 884W
2. Peak Power: 36V 1260W/ 48V 1680W/ 52V 1820W
3. Brake: Low Voltage Brake
4. Alarm: Low Voltage Alarm
5. Rotor Position Detecting Method: Hall sensor
6. Size: 212x86.5x48.5mm
7. Net Weight: 610g
8. Waterproof Grade: IP65

FAQ:
1. How shall I match my motor for first time use? (Very Important)
1). Lift your motor wheel off ground (very important)
2). Connect Self-learning plug 6-8 seconds
3). You will see motor wheel rotate slowly
4). Please check whether rotation direction is correct
(a). If correct direction, then keep 6-8 seconds, then disconnect
(b). If reverse direction, then disconnect and plug again till get correct rotation direction, then keep 6-8 seconds, then disconnect
5). Motor and Controller Pairing finished!

2. Can I use this controller without display?
Yes, you can use this controller without display, just need to connect jumper connector
