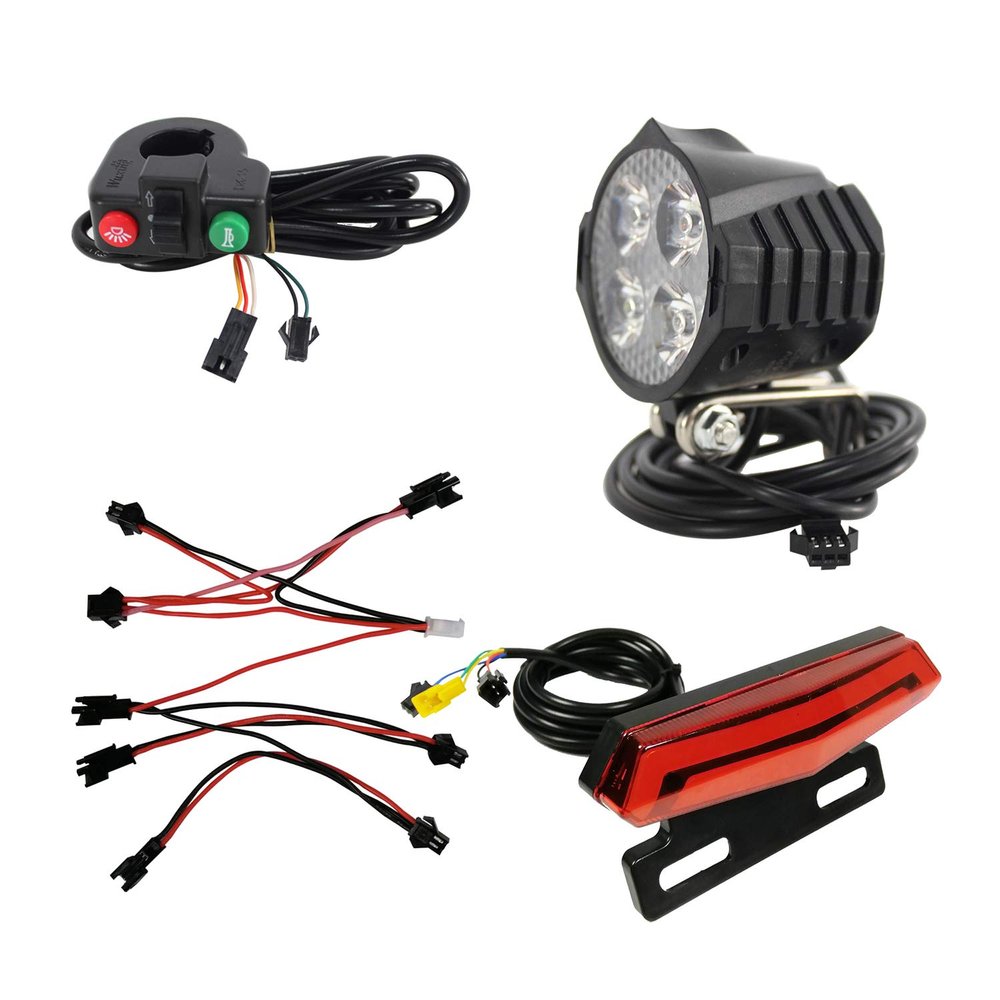

Ebike Electric Bike Bicycle 24/36/48V/60V Headlight and Tail Light Sets

Description

Application: LED headlights for electric bicycles, shared electric vehicles, and motorcycle
Net weight of the whole set: 330g
Package weight: about 0.65KG (small carton)

Work status description:
Driving lights: When the switch of driving lights is turned on, the headlights and tail lights are on
Horn: When the horn button is pressed, the horn starts to work, release it to cancel
Brake light: When the brake signal line and the controller brake low voltage signal are connected normally, the brake light will light up while braking, and the brake light will go out when the brake is cancelled
Turn signal: When the turn switch of the designated direction is toggled, the turn signal of the corresponding direction starts to work and flashes, the flashing frequency is about 800ms each time

the data of Headlight
1. Net weight of headlight: 100g
2. Shell material: plastic
3. Applicable voltage range: 24V-60V
4. Power: 59mA/2.8W
5. Luminous flux: 180-220LM
6. Horn Power: 44mA/2.1W
7. Horn Volume: 80-100dB
8. CQC Certification: CQC19134228086
9. Product size: 62*50*70mm
10. Cable length: about 1.5M
11. Light Power: 12W

the data of Tail Light
The tail lamp includes brake and turn signalleft and right functions

1. Net weight of taillight: 120g
2. Shell material: plastic
3. Applicable voltage range: 24-80V
4. Power: 1.5W
5. Number of light sources: 14
6. Luminous flux: 15LM
7. Product size: 132*65*40mm
8. CQC certification: CQC19134228085
9. Cable length: about 1.5M
