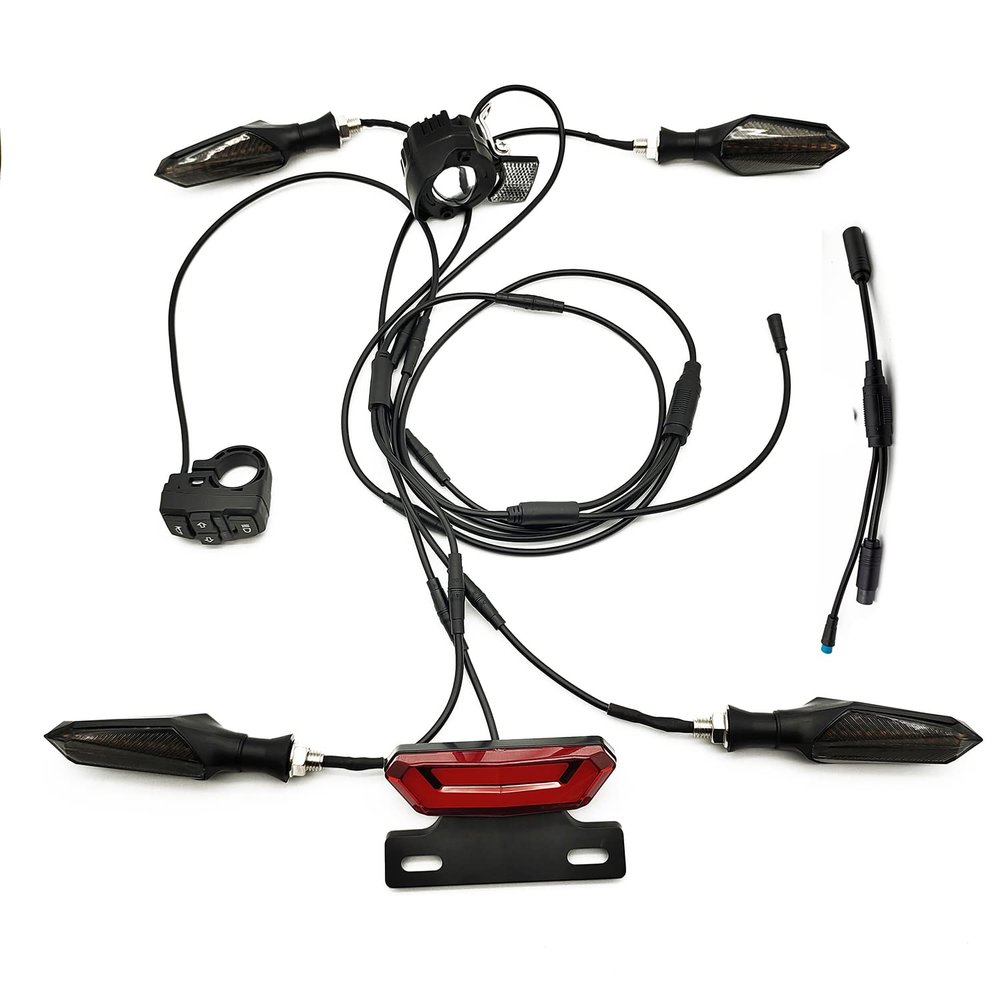

ebike 24V/36V/48V/52V/60V Light Kits with Waterproof Cable for Bafang and KT (for BAFANG Mid Drive Motor with UART Protocol)

Description

• For Bafang 36V 250W 36V 350W 36V 500W Mid Drive motor Kits with UART protocol
• For Bafang 48V 250W 48V 350W 48V 500W Mid Drive motor Kits with UART protocol
• For Bafang 48V 1000W HD Mid Drive motor Kits with UART protocol
• Function: Front and rear flashing water turn signal, horn, near light, rear running light, brake light, rear day running light
• Net weight of the set: 580g
• Net weight of the set: 580g
• Packing weight: 0.7kg

Packing List:
1. headlight *1 piece
2. Turn signal *4 pieces
3. rear light *1 piece
4. switch *1 piece
5. mounting bracket *1 piece

Specification of Headlight:
L-030 (Aluminum alloy)
Applicable voltage: 24V/36V/48V/52V/60V
Light current: 48V/190mA, 36V/250mA
Power: 9W
Function: near-light lamp, horn
Light brightness: 650 LM
Loudspeaker volume: 75-100 dB
Outlet: three-core wire
Product appearance (50*62*73)
Line length: 15 cm

Switch parameters:
Code: PT0362
WUXING 336/2 waterproof IP4
Size: L 26mm W 54mm H 54mm
Weight: 41 g
Waterproof: IPX4
Material: PA6+20GF TPR
Wiring: 6/8 Pins
Current: 0.5A/12V-60V DC
Operating temperature: -20 ~ 60

Specification of Rearlight:
Model: WD-10c/019
Applicable voltage: 24V-60V
Rear lamp current: 48V/23mA, 36V/17mA
Power: 1.1 W
Function: Rear light, brake light
Light brightness: 30 LM
Outlet wire: four core wire

Turn signal:
Applicable voltage: 48V / 36V
Power: 3W
Light color: yellow / blue
Features: Cool flowing lights
