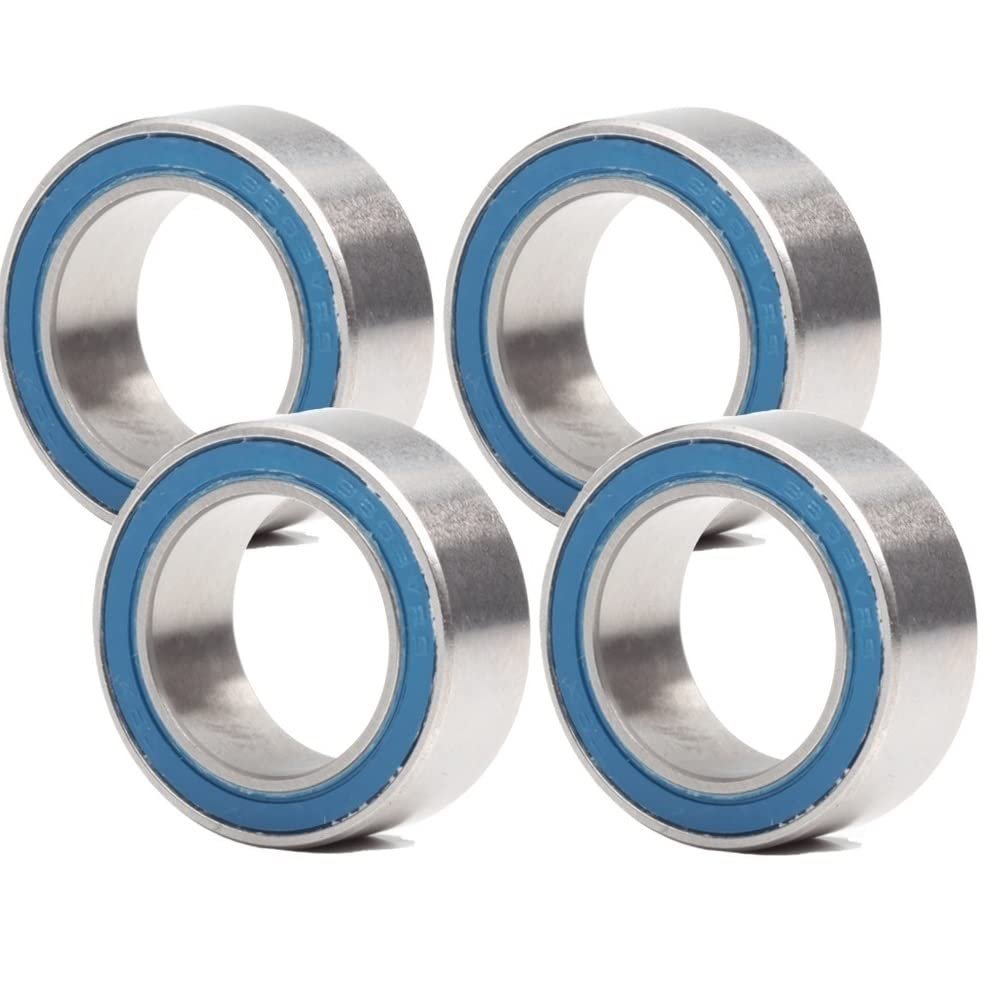

4PCS 3803-2RS MAX Bearing 17x26x10mm Double Row Full Balls Bicycle Suspension Pivot Repair Parts 3803LLB-W Ball Bearings Accessories

Description

• WHAT ARE MAX BEARINGS? Designed specifically for suspension pivots, The bearings pioneered MAX type bearings for bicycles to address the challenges associated with mountain bike pivots.
• These bearings have 35-40% more load capacity than standard radial bearings.
• We accomplish this with a special design where the maximum number of balls are inserted into the bearing.
• The race grooves are deeper on these bearings for more lateral support for the twisting and multiple forces associated with mountain bike pivots.
• LLU seals give maximum protection against the elements, while keeping the 90% fill of XHP-222 High High Quality Grease inside.

DETAILS
Item: 3803-2RS
Closures: RS Sealed
Structure: MAX, Double Row Full Balls, NO Retainer.
Dimensions: 17 x 26 x 10 mm
ID (inner diameter): 17 mm
OD (outer diameter): 26 mm
Width: 10 mm
Quantity: 1 Lot = 4 PC

Grease
They are characterized by excellent water resistance and load-carrying properties and help provide long-term protection against rust and corrosion.
Bearing Installation and Removal
Bearings should never be installed by pressing on the inner race.
Always press on the outer race with a pilot bushing or similar tool, which will only make contact with the metal side of the outer race.
A bearing press or similar should be used to exert the force needed to press the bearing into the housing.
Ensure that the seating surface is clean and free from rough edges so that they fit true and square.
Quite often bearings can feel fine before fitting, but then feel "notchy" or "rough" after fitting. This is almost always due to the bearings not sitting square and true.
Care needs to be taken that the bearing is started straight and not at an angle to the housing.
Bearing CareTo prolong the life of your bearings, do not direct a high jet of water near areas of your bike where there bearings are located - an ingress of water can lead to premature bearing failure.
The material of this bearing is 52100 Chrome steel, Not waterproof.
