42V Electric Skateboard Controller Remote,Mini Remote Controller Receiver for Electric Skateboard Control Single Drive ESC Substitute Control Mainboard with Remote Electric Skateboard Esc Kit

Description

• Superior PerformanceSkateboard Controller ESC,Constructed with high-quality chips and electronic components, this single-drive design delivers exceptional and stable performance for your electric longboard.
• Durable and Long-LastingElectric Skateboard Controller,The robust mainboard structure significantly extends the service life of the control system, ensuring long-term reliability and durability.
• Remote OperabilitySkateboard ESC Replacement,Equipped with a remote receiver module, enabling seamless remote control functionality for added convenience.
• Professional InstallationSkateboard Mainboard,The well-organized circuit board is designed for straightforward installation but requires professional skills for optimal setup.
• Comprehensive ProtectionSkateboard ESC Substitute,Featuring over-voltage, under-voltage, overheating, and over-current protection, this system offers safe and reliable operation with easy speed control capabilities.
• Superior PerformanceSkateboard Controller ESC,Constructed with high-quality chips and electronic components, this single-drive design delivers exceptional and stable performance for your electric longboard.
• Durable and Long-LastingElectric Skateboard Controller,The robust mainboard structure significantly extends the service life of the control system, ensuring long-term reliability and durability.
• Remote OperabilitySkateboard ESC Replacement,Equipped with a remote receiver module, enabling seamless remote control functionality for added convenience.
• Professional InstallationSkateboard Mainboard,The well-organized circuit board is designed for straightforward installation but requires professional skills for optimal setup.
• Comprehensive ProtectionSkateboard ESC Substitute,Featuring over-voltage, under-voltage, overheating, and over-current protection, this system offers safe and reliable operation with easy speed control capabilities.

Specifications: Single Motor Drive ESC:
Rated Voltage: 36V
Current: 12A
Power: 430W (36V)
Rotate Speed: 3000rpm
Speed: 35km/h
Drive Mode: FOC
Sensing Mode: Hall
Load Bearing: 120kg
: Over-voltage, Under-voltage, Overheat, Stall, CW/CCW, Overcurrent, Speed Control

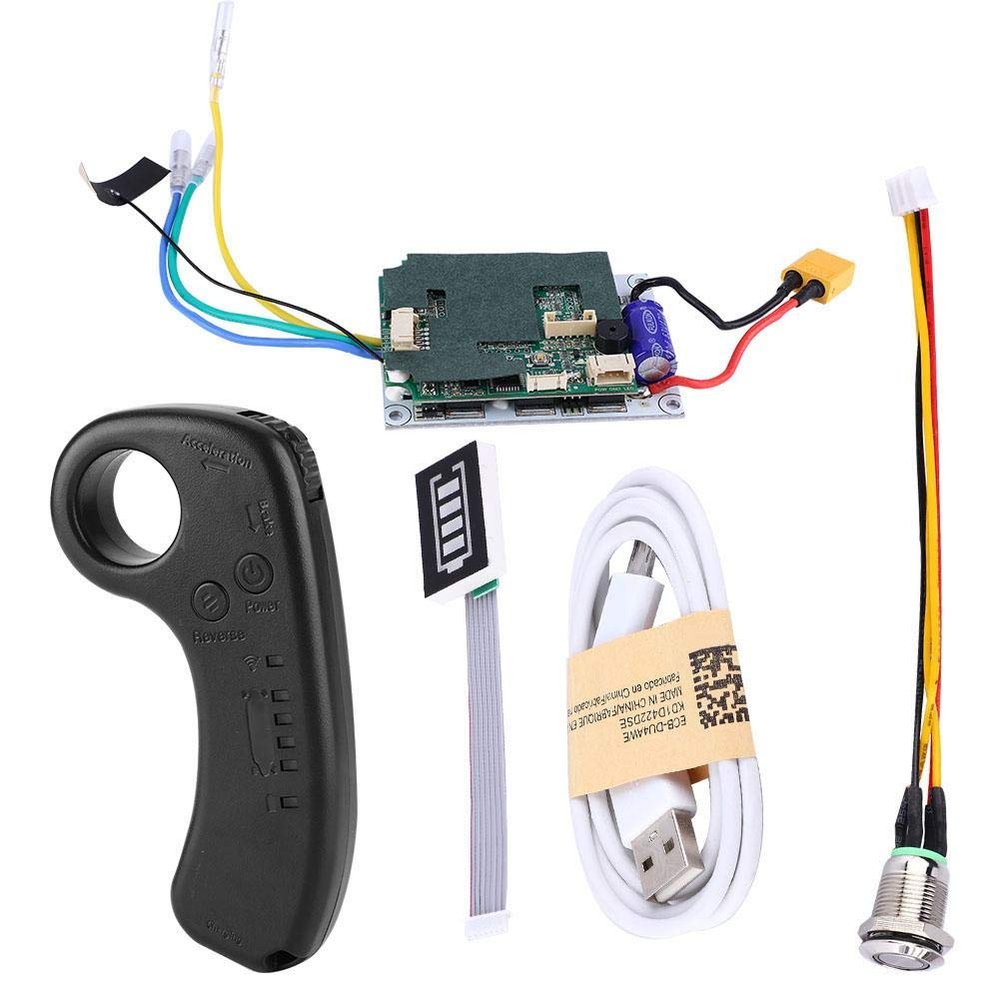

Package List:
1 * Control
1 * Remote Control Transmitter
1 * LED Battery Indicator
1 * Switch
1 * USB cable
The remote controller matches the main controller with a description:
1: Connect the main control to the power supply
2: The power is turned on, wait for two seconds, then press and hold the key for about 6 seconds. Wait until the switch indicator flashes.
3: Turn on the remote control switch and use a small screwdriver to press the button inside the small hole in the lower left corner of the remote control.
4: The remote control is turned off for two seconds and then turned on. Wait for the remote control light and the switch light to flash at the same time to indicate that the match is successful!

Note:
1. The driver board is a high- circuit board. Do not touch the metal object/liquid to the board before and during use to avoid internal short circuit! 24V ESC must use a voltage 24V, the maximum voltage can be used is 29.4V (the ESC won't work below 24V). 36V ESC must use a voltage 36V, the maximum voltage can be used is 48V (the ESC won't work below 36V).
2. Do not connect motor lines in parallel to allow single drive to drag two motors.
