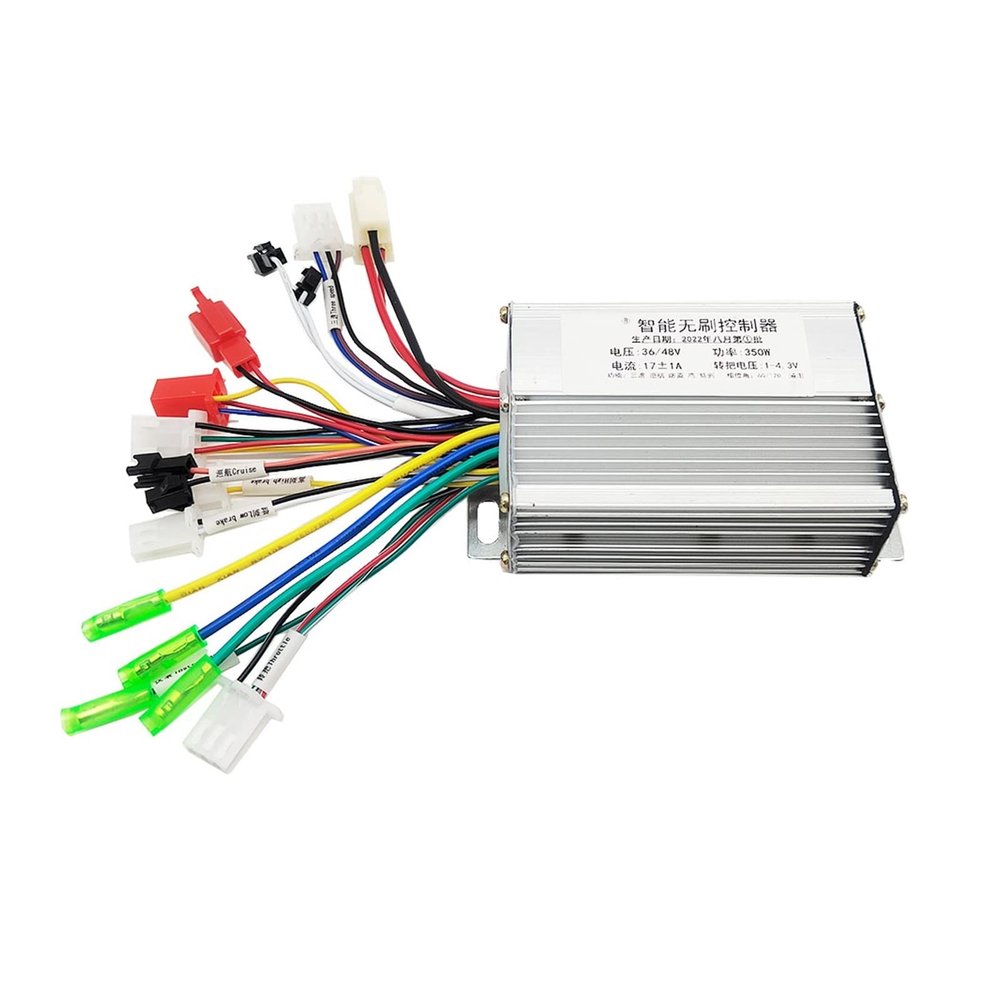

36V/48V 350W e-Bike Brushless Controller for Electric Bicycle E-Scooter Dual Mode Sensor/Sensorless

Description

• Limit Current: 17A
• Rated Power: 350W
• Rated Voltage: 36V/48V
• Low Voltage : 31V/42V0.5V
• 36V-48V 350W controller can work with hall sensor/hall sensorless

36V-48V 350W controller can work with hall sensor/hall sensorless
Rated Voltage: 36V/48V
Low Voltage : 31V/42V0.5V
Rated Power: 350W
Limit Current: 17A
1.pointer meter line
2. motor line
3.3-speed line
4.Anti-theft alarm line
5.self-learning line
6.hall line
7.throttle line
8.low brake
9.Anti-theft power line
10.Cruise speed line
11.battery(2 red wires battery +,black battery -)
12.high brake
.connect the motor line (color to color)
. connect the battery line(2 red wires :battery + , black:battery-)
. connect the controller throttle line(color to color)
. connect the hall line(if motor without hall line, don't need connect)
.docking the two self-learning lines, the wheel will forward or reverse.
(1.if wheel forward ,Separate the self-learning line.
2.if wheel reverse, Separate the self-learning line. Docking the self-learning line again,if wheel forward ,Separate the self-learning line.)
.other functions can be connected as needed.
