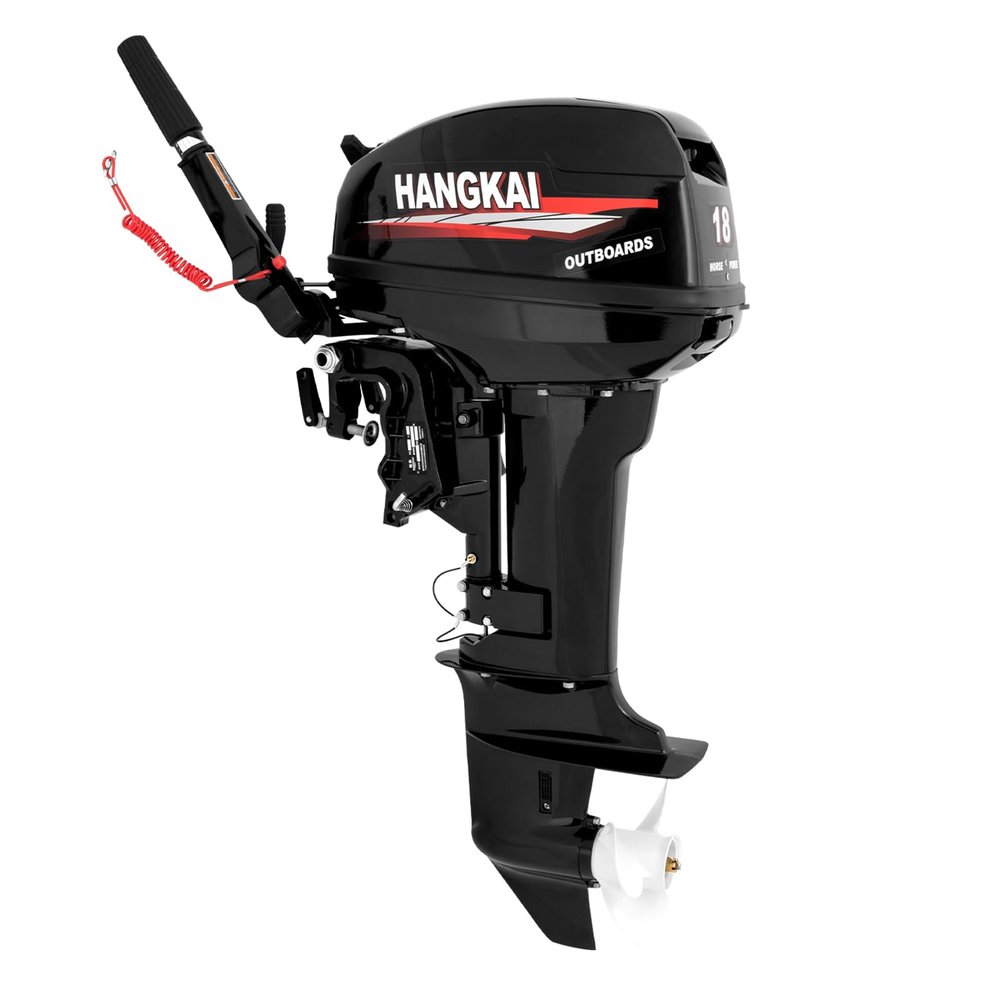

2 Stroke 18 HP Short Shaft Outboard Motors Engine, Fishing Boat Engine Tiller Control Motor Fishing Boat Engine Water-Cooling Heavy Duty Outboard Motors

Description

• Notice! Notice! This outboard motor is 18HP instead of 16HP (mistake when it was listed)
• WIDE RANGE OF APPLICATIONS - Perfect match for inflatable boats, fishing boats, sailing boats, kayaks and small yachts. Better performance, faster starting, and the motor can be positioned at multiple angles.Application field: used in fishery, aquaculture, outdoor adventure, etc.
• SPECIFICATIONS - Displacement: 246CC Short shaft: 40cm /15.7 in Gear ratio: 2.08(27:13) Cylinder: 2 Max.Output(kw): 13.2 KW Max.speed(r/min): 5000 - 6000 Gear Positions: F-N-R Ignition System: CDI Cooling System: Water-cooling Control System: Tiller control Starting System: Manual start
• SEVERAL ISSUES - Several issues with this motor first the linkage that goes from the gear selector to the starting rope to block the rope to be pull when the motor is in gear was unattached , and still after fixing it every time you go into any gear it gets unattached second, the starting rope doesn't retract all the way when you attend to start the engine.

Notice! Notice! This outboard motor is 18HP instead of 16HP (mistake when it was listed)

NOTE:
1.Start the motor in the water
2.Use the motor when it stop cyling water
Even if you want test the motor, it should be done in the river!
When there is no water coming out from the motor,please stop using it immediately ,then check the impeller of Water pump or check if the water outlet has been blocked.

Specifications:
Displacement: 246CC
Short shaft: 15.7 in
Gear ratio: 2.08(27:13)
Cylinder: 2
Max.Output(kw): 13.2 KW
Max.speed(r/min): 5000 - 6000 RPM
Gear Positions: F-N-R
Ignition System: CDI
Cooling System: Water-cooling
Control System: Tiller control
Starting System: Manual start
Control System: #93 gasoline
N.W.: 38.6 KG /85 lbs
Bore x Stroke(mm): 56 x 50 mm /2.2 x 2 in
Recommended Propeller range: 3 -9"1/4''x8"
Recommended Lubricant: 2 Stroke Lubricating oil
Mixing ratio: Fuel:oil=50:1
Trim and tilt system: Manual Tilt
Overall L x W x H: 31 x 13 x 41.5 in
Standard fuel tank capacity: 24 L /6.3 Gal

Must Read before using!

Two stroke 18 HP:
Firstly, Fill the gear oil (open gear box lid and fill it).
Secondly, Fill NO. 92 petrol, lightly press oil pump 6-10 times.
Thirdly, Fill engine oil don't exceed the head of the pattern.
Forthly, turn the throttle to the start up and turn the accelerator gets up to 50%.
Then, Rapidly pull the starter line.
After the motor start, please turn the throttle to running state.
Then, it can be operated now.
