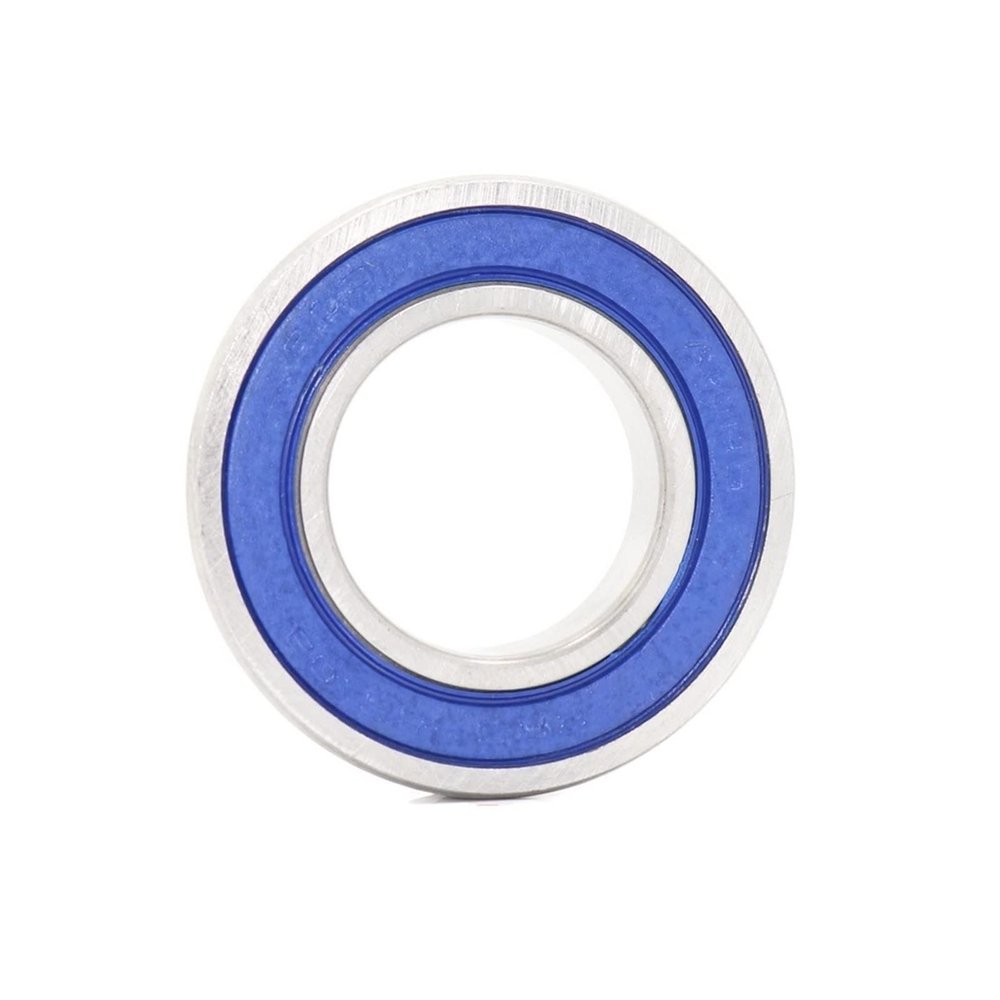

1PC 63/22 Hybrid Ceramic Bearing 22x56x15mm Race Bike Front Rear Wheel 63 22 2RS LUU Hybrids Si3N4 Ball Bearings 63/22RS Accessories

Description

• WHAT IS A HYBEID CERAMIC BEARING? A ceramic hybrid bearing is a combination of ceramic balls and bearing quality steel rings.
• Special Note: 1, Sometimes the cages will be different. eg.: 67 series thin-walled bearings, because the inner wall is very thin, will use the crown-shaped iron cage.
• 2, so sometimes there are different colors of the rubber sealed.
• 3, The standard clearance of bearings is ISO standard C0, the United States standard K25, the clearance value is 3-18um.
• BEARING STRUCTURE: 52100 Chrome Steel Outer Ring & Inner Ring Si3N4 Ceramic Balls Nylon Cage Grease + Sealed = HYBID CERAMIC BEARINGS

TECHNICAL SPECS

Model: 63/22 RS
Structure: Deep Groove Ball
Material: Hybrid Ceramic
Bore Dia (d): 22 mm
Outer Dia (D): 56 mm
Width (B): 16 mm
Closures: Sealed (2RS)
Lubrication: Grease
Clearance: C0
Dynamic Load Rating (Cr) (Newtons): 18500
Static Load Rating (Cor) (Newtons): 9400
Weight: 0.201 kg
Quantity: 1 Lot = 1 PC
